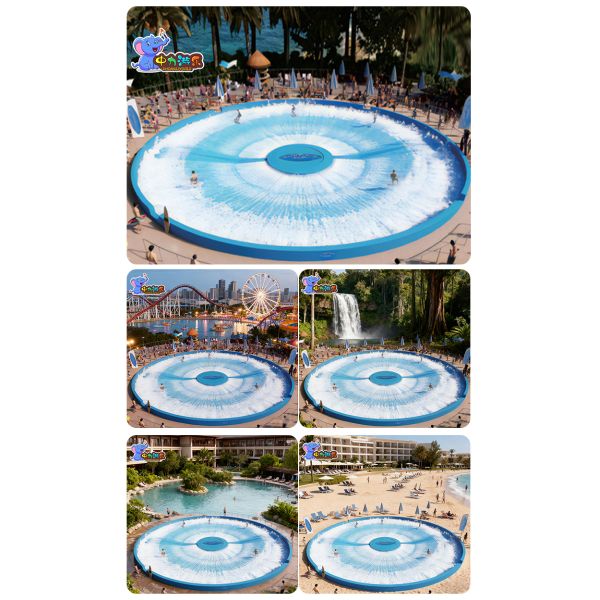

Commercial Surf Wave Simulator 360° Flowrider Machine 460kw

The Surf Simulator is a top-level facility specially designed for beach resorts, theme parks, and high-end water sports centers. It breaks through the one-way limitation of traditional surfing waves, generating powerful and uniform spiral waves through the core wave-making platform, providing surf enthusiasts with an unprecedented 360° panoramic immersive surfing experience. Whether you are a beginner or a professional surfer, you can find your own thrill at the crest of the waves here.

• 360° Panoramic Surfing

  The unique circular wave-making pool design of the Surf Simulator creates an endless circular wave wall, allowing surfers to freely change directions and enjoy continuous and smooth sliding fun, completely eliminating the waiting intervals for waves to come.

• Multi-player Play

  The Surf Simulator supports multiple surfers to challenge on the wave wall simultaneously. It not only allows competitive play but also enables mutual learning, greatly enhancing the capacity and social entertainment attributes of the facility.

The production cycle of the equipment is 20 days, the installation cycle is 30 days, and the operating power is 355-460kw.

• Weight: 15T - 30T
• 1. Single pump flow rate: 3000 - 4000 m3/h, head: 7 - 3.5 m
• 2. Submersible axial flow pump: 600QZ - 70 - 90 kw, 8-pole motor, rotational speed: 740 r/min
• 3. Voltage levels: 380V, 660V, 3KV, 6KV, 10KV
• 4. Protection level: IP68
• 5. Insulation level: F grade, H grade.

• 1. Sand tank Q650, Q = 16.5 m/h, pipe diameter interface 50mm PVC pipe, requires 750KG of quartz sand.
• 2. Water pump AS100, Q = 18 m/h, 0.75KW, maximum head = 12m, pipe diameter interface 50mm PVC pipe.
• 3. Filter material 1-2Mm.
• 4. All-plastic flow-through sterilizer UV2T-P, UV2T-P. 220V, Q = 2m3/h, lamp tube configuration 1 root 30W. Interface size 1 inch. Working pressure 0.6Mpa, height (mm):
• 5. Automatic dosing bucket can achieve automatic dosing, economical and convenient.
